9/16-18 STUDS AND NUTS
Please email for price and availability.
9/16" Nuts
9/16"-18 Nuts
60 Degree Conical Nuts
Type 1
13-3046
Thread: .56-18
Hex Size: 0.87
Height: 0.75
9/16"-18 Nuts
90 Degree Conical Nuts
Type 2, Thread .56-18
13-3041R
Hex Size: 1.0
Height: 0.81
13-3044R
Hex Size: 1.06
Height: 0.62
9/16-18 Headed Studs

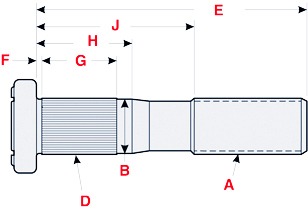

9/16"-18 Studs - Headed Studs - Type 2
Grade 8, Thread Size: .56-18
Body Dia (B) .605/.608
Dum Shoulder (C): None
Serratrion Dia: (D): .618/.625
Serr.: 38
Appl: GM
13-2650
Overall Length (E): 3.00
To the Serr. (F): .06
Serr. Length (G): .84
Shoulder Length (H): 1.06
Max to 1st Full Thread (J): 1.75
13-2651
Overall Length (E): 3.50
To the Serr. (F): .06
Serr. Length (G): .84
Shoulder Length (H): 1.06
Max to 1st Full Thread (J): 1.88
13-2653
Overall Length (E): 3.60
To the Serr. (F): .06
Serr. Length (G): .84
Shoulder Length (H): 1.06
Max to 1st Full Thread (J): 1.59
