Chalmers – 600 Series Trailer Suspension

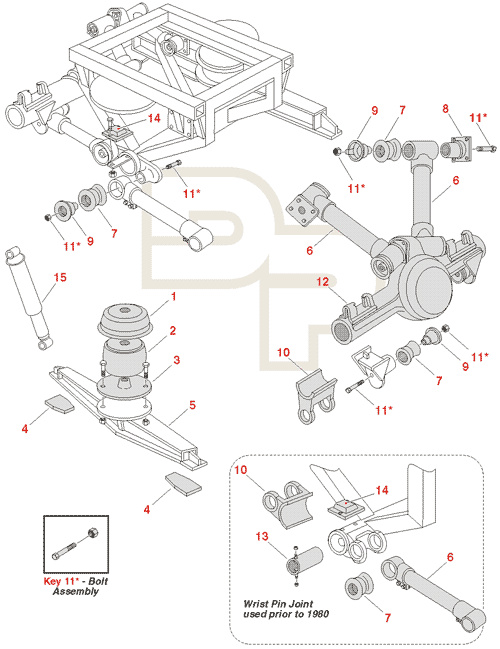

CHALMERS - 600 SERIES TRAILERS SUSPENSION

KeyPart #Description# Req.OEM Reference
1334-860Restrictor Can; 4 7/16"H x 12 5/8"Dia. x 3/16"Thk.2373028, 373020
1334-861Restrictor Can; 5 11/64"H x 11 5/8"Dia. x 3/16"Thk.2373029, 373021
2325-156Spring, Rubber; 8"H x 9 1/2"Dia.215002
3334-864Plate, Bottom Spring222116
4334-945Plate, Beam End Repair - All Beams4700313
5----Walking Beam2Various
6345-674Torque Rod, Rigid; 21 1/2"AR223214
6345-676Torque Rod, Rigid; 23"AR223240
6345-685Torque Rod, Adjustable; 23.25" - 24.75"AR216240
6345-678Torque Rod, Adjustable; 20-75" - 22.25"AR216214
7321-273Bushing; 2 3/8"ID x 3 1/8"OD x 3 25/32"Lg.1622128, 22082
7321-273UBushing, Urethane32
7321-274Bushing; 2 3/8"ID x 3 7/32"OD x 3 25/32"Lg.1622129
8338-1315Spigot Base; 25°22600010
9321-275Spigot Cap - 3.75 OD16260002
10338-1314Bracket, Torque Rod; 5" Round Axles848017
11334-624Bolt Assembly; 5/8"-11 x 3 1/2"16K880230
12338-1406Saddle; Rockwell Axles4248001
12338-1407Saddle, High4248027
13334-854Pin; 2"ID x 2 3/8"OD x 6"Lg.822037
14325-159Cushion, Low Rebound248045
15M65119Shock Absorber2
