Light Duty Steering – Tie Rod Ends

TIE ROD ENDS

Tie Rod Ends & Drag Link Ends

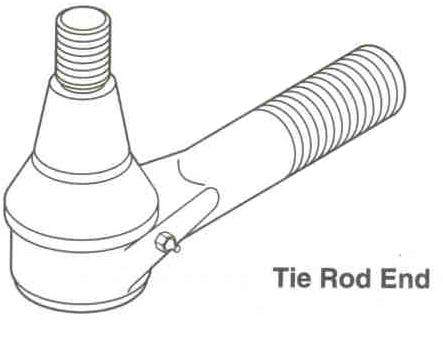

Tie Rod Ends Function: The primary function of tie rods and center links is to transmit the steering desires of the driver to both front wheels. The sockets allow the linkage parts to have freedom of movement

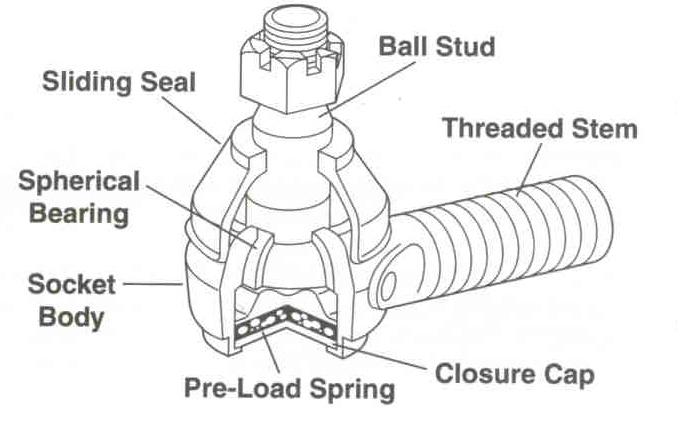

Socket Designs Features and Benefits: DPI sockets feature a dual bearing design which distributes wear to two surfaces slowing the overall wear rate for maximum service life.

Ball studs contain nickel, chrome and molydenum for toughness.

Constant torque and low end movement is assured through use of hardened steel upper ball seat and a tough nylon lower ball seat in the full ball design.

Automatic wear take-up is provided by the pre-load spring and spring seat utilized in half ball designs.

Tie Rod Ends & Drag Link Ends

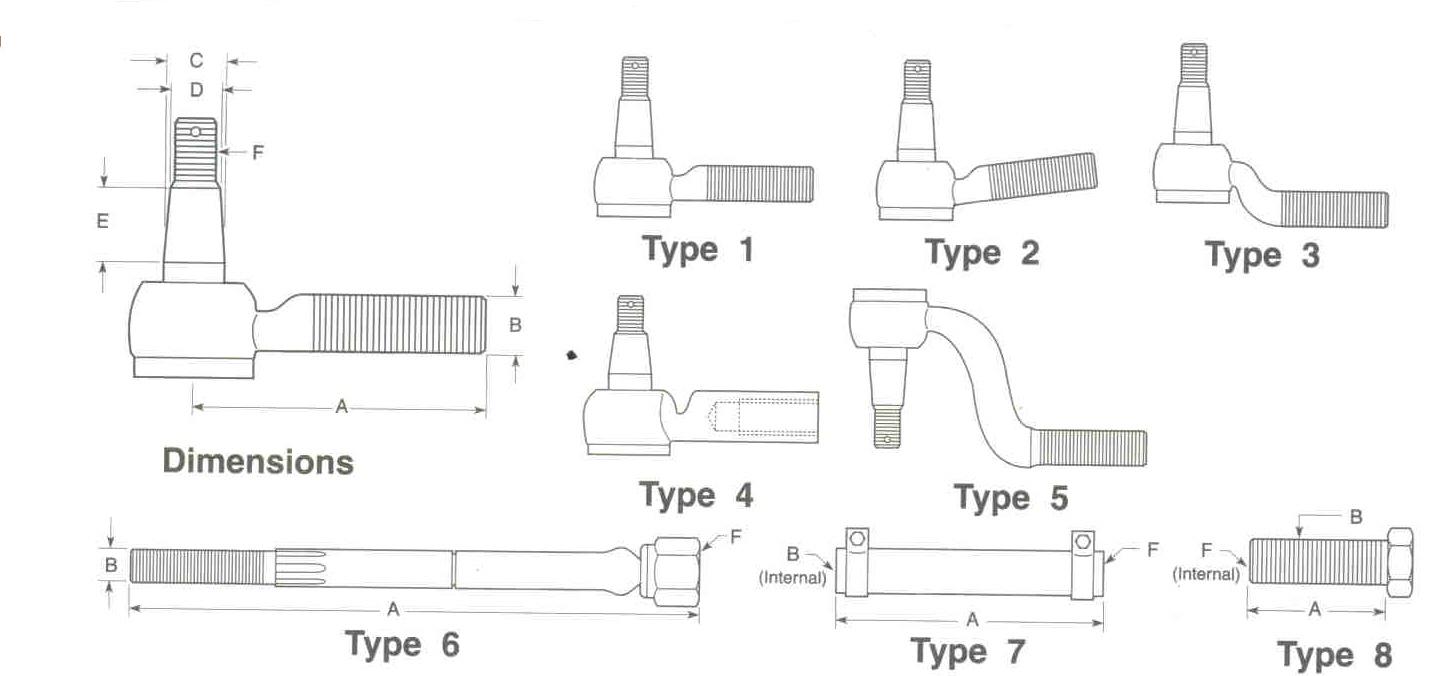

DPI Part No.	Industry Part No.	Stud Ct Rod End A	Rod Thread Size B	Large Dia. C	Small Dia. D	Taper Length E	Stud Thrd Size F	Type	Remarks
310-573	ES3453	—	—	—	—	—	—	—
310-565	ES3492	—	—	—	—	—	—	—
310-566	ES3493	—	—	—	—	—	—	—
310-564	ES3489	—	—	—	—	—	—	—
310-562	EV362	—	—	—	—	—	—	6	Inner socket -
310-549	ES3399	—	—	—	—	—	—	—
310-550	ES3400	—	—	—	—	—	—	—
310-575	ES3446	—	—	—	—	—	—	—
310-548	ES3398	—	—	—	—	—	—	—
310-571	ES3124S	—	—	—	—	—	—	7	Adjusting sleeve
346-482	DS1309	—	—	—	—	—	—	—
310-569	EV317	—	—	—	—	—	—	6	Inner socket -
310-561	ES3461	—	—	—	—	—	—	—
346-508	DS1434	—	—	—	—	—	—	—
310-555	ES3421S	—	—	—	—	—	—	7	Adjusting sleeve
310-554	ES3420S	—	—	—	—	—	—	7	Adjusting sleeve
310-557	ES3423	—	—	—	—	—	—	—
346-510	DS1439	—	—	—	—	—	—	—
346-504	DS1065	—	—	—	—	—	—	—
310-515	ES2251S	2.5	M16 x 1.50 LH				M16 x 1.50	7	Adjusting sleeve
310-403	ES2848L	3.18	.750-16 LH	0.626	0.543	0.66	.500-20	1
310-404	ES2847R	3.18	.750-16	0.626	0.543	0.66	.500-20	1
310-197	ES393R	3.25	.750-12	0.626	0.543	0.66	.500-20	1
310-198	ES394R	3.25	.750-18	0.626	0.543	0.66	.500-20	1
310-255	ES2010L	3.37	.875-18 LH	0.776	0.675	0.8	.625-18	1
310-256	ES2010R	3.37	.875-18	0.776	0.675	0.8	.625-18	1
310-526	ES3156	3.37	M16 x 1.50 LH	6.05	0.53	0.71	M12 x 1.25	1
310-423	ES2841S	3.5	1.25-16				1.00-16 LH	8	Reducing sleeve
310-514	ES2246L	3.5	M16 x 1.50 LH	0.622	0.535	0.63	M12 x 1.25	2
310-533	ES3242	3.81	M14 x 1.50	0.63	0.521	0.63	M12 x 1.25	4
310-401	ES401R	4	.562-18	0.626	0.558	0.56	.500-20	2
310-402	ES401L	4	.562-18 LH	0.626	0.558	0.56	.500-20	2
310-231	ES437L	4	.875-18 LH	0.703	0.594	0.87	.562-18	2	Bent
310-257	ES2011R	4.12	1.00-18	0.776	0.675	0.8	.625-18	1
310-528	ES3181	4.25	M14 x 1.50	0.625	0.53	1.66	M12 x 1.25	4
310-237	ES449L	4.37	.875-18 LH	0.776	0.675	0.89	.625-18	3
310-265	ES2032S	4.5	.625-18 LH				.625-18	7	Adjusting sleeve
310-335	ES2072L	4.5	.687-18 LH	0.593	0.509	0.67	M12 x 1.25	2
310-543	ES3368S	4.5	.750-16 LH				.750-16	7	Adjusting sleeve
310-180	ES362S	4.5	.875-18 LH				.875-18	7
310-344	ES3401	4.5	M14 x 1.50	0.593	0.486	0.66	M12 x 1.25	4
310-345	ES2054R	4.5	M14 x 1.50	0.593	0.509	0.67	M12 x 1.25	4
310-400	ES2850	4.5	M14 x 1.50	0.626	0.536	0.72	.500-20	4
310-430	ES3122R	4.5	M22 x 1.50	0.761	0.685	0.72	M16 x 1.50	1
310-252	ES2004S	4.75	.687-18 LH				.687-18	7	Adjusting sleeve
310-274	ES2064L	4.75	1.00-18 LH	0.776	0.662	0.91	.562-18	1
310-574	ES3447	4.75	M14 x 1.50	0.684	0.592	0.78	M14 x 1.50	4
310-405	ES2262R	4.75	M14 x 1.50	0.703	0.594	0.89	M14 x 1.50	4
310-517	ES3011R	4.75	M15 x 1.50	0.703	0.628	0.59	.562-18	4
310-338	ES2234R	4.87	.875-18	0.776	0.675	0.8	.625-18	1
310-275	ES2065L	4.87	.875-18	LH	0.705	0.613	.562-18	2
310-537	ES3302	4.87	M14	x	1.5	0.736	M14 x 1.50	4	Bent
310-272	ES2062R	5	1.00-16	0.899	0.783	0.97	.750-16	1
310-558	ES3426S	5	1.00-16 LH				1.00-16	7	Adjusting sleeve
310-302	ES2080S	5	M20 x 1.50 LH				M20 x 1.50 LH	7	Adjusting sleeve
310-301	ES2079S	5	M22 x 1.50 LH				M20 x 1.50 LH	7	Adjusting sleeve
310-217	ES413R	5.12	.875-18	0.703	0.612	0.72	.562-18	2	Bent
310-218	ES414R	5.12	.875-18	0.703	0.612	0.72	.562-18	2	Bent
310-556	ES3422S	5.12	1.50-16 LH				1.50-16	7	Adjusting sleeve
310-303	ES2120R	5.18	.687-18	0.703	0.626	0.65	.562-18	1
310-304	ES2121L	5.18	.687-18	0.703	0.626	0.65	.562-18	1
310-383	ES2913R	5.37	.875-18	0.703	0.594	0.87	M14 x 1.50	1
310-490	ES3248	5.37	1.00-18	0.702	0.594	0.75	M14 x 1.50	1
310-410	ES2396	5.37	1.00-18	0.703	0.594	0.87	M14 x 1.50	2
310-524	ES3099	5.37	M20 x 1.50 LH	0.626	0.558	0.54	.500-20	1
310-299	ES2077R	5.37	M20 x 1.50 LH	0.703	0.594	0.87	M14 x 1.50	2
310-489	ES3172	5.37	M20 x 1.50 LH	0.702	0.594	0.75	M14 x 1.50	1
310-523	ES3098	5.37	M20 x 1.50 LH	0.702	0.626	0.56	.562-18	1
310-300	ES2078L	5.37	M20 x 1.50 LH	0.703	0.594	0.87	M14 x 1.50	2
310-356	ES2215L	5.37	M20 x 1.50 LH	0.703	0.594	0.87	M14 x 1.50	1
310-357	ES2214R	5.37	M22 x 1.50	0.703	0.594	0.87	M14 x 1.50	1
310-355	ES2212R	5.37	M22 x 1.50	0.703	0.594	0.91	M14 x 1.50	1
310-413	ES2615R	5.37	M22 x 1.50	0.703	0.613	0.72	M14 x 1.50	1
310-440	ES3203L	5.37	M22 x 1.50 LH	0.702	0.594	0.87	M14 x 1.50	1
310-370	ES2914R	5.43	1.00-18	0.723	0.615	0.72	M14 x 1.50	2	Bent
310-493	ES3363	5.5	1.00-18	0.698	0.594	0.87	M14 x 1.50	2
310-258	ES2012S	5.5	1.00-18 LH				1.00-18	7	Adjusting sleeve
310-412	ES2727R	5.5	M22 x 1.50	0.703	0.594	0.87	M14 x 1.50	2	Bent
310-311	ES2126R	5.5	M22 x 1.50	0.726	0.615	0.94	M14 x 1.50	2	Bent
310-411	ES2728L	5.5	M22 x 1.50 LH	0.703	0.594	0.87	M14 x 1.50	2	Bent
310-312	ES2127L	5.5	M22 x 1.50 LH	0.726	0.615	0.94	M14 x 1.50	2	Bent
310-439	ES3202	5.75	1.00-18	0.702	0.594	0.87	M14 x 1.50	1	Bent
310-494	ES3362	5.75	M22 x 1.50	0.698	0.594	0.83	M14 x 1.50	2
310-544	ES3369	6.12	M18 x 1.50	0.694	0.616	0.8	M14 x 1.50	1
310-545	ES3370	6.12	M18 x 1.50 LH	0.708	0.612	0.84	M14 x 1.50	1
310-263	ES2027L	6.37	.875-18 LH	0.793	0.722	0.64	.625-18	1
310-427	ES3084R	6.37	1.00-18	0.703	0.594	0.87	.562-18	2	Bent
310-426	ES3085L	6.43	M22 x 1.50	0.698	0.594	0.87	M14 x 1.50	2
310-496	ES3247	6.5	1.00-18	0.702	0.594	0.87	M14 x 1.50	1
310-541	ES3366	6.5	M18 x 1.50	0.694	0.58	0.84	M14 x 1.50	1
310-542	ES3367	6.5	M18 x 1.50	0.694	0.581	0.76	M14 x 1.50	1
310-212	ES409R	6.75	.687-18	0.676	0.593	0.66	.562-18	1
310-513	ES2245R	6.75	M16 x 1.50	0.622	0.535	0.63	M12 x 1.25	2	Bent
310-328	ES2218R	6.81	.687-18	0.752	0.593	1.27	.562-18	2	Bent
310-492	ES3185L	6.81	1.00-16 LH	0.78	0.675	1.5	.625-18	1
310-536	ES3254	7	.687-18	0.622	0.5	0.68	M12 x 1.75	2
310-498	ES2925L	7	1.00-16 LH	0.682	0.612	0.7	M14 x 1.50	1
310-233	ES444L	7	1.00-18 LH	0.703	0.594	0.87	.562-18	1
310-552	ES3417	7.12	1.00-16	0.74	0.628	0.71	M14 x 1.50	1	Bent
310-553	ES3418	7.37	M22	0.768	0.62	0.87	M14 x 1.50	1
310-386	ES2836	7.43	.687-18	0.622	0.521	0.8	M12 x 1.50	1
310-394	ES2838	7.43	.687-18 LH	0.622	0.55	0.57	M12 x 1.75	1
310-387	ES2837	7.87	.687-18 LH	0.622	0.55	0.57	M12 x 1.75	1
310-546	ES3379	8	.687-18	0.599	0.455	0.9	.437-20	1
310-559	ES3427	8	1.00-16	0.698	0.614	0.76	M14 x 1.50	1
310-529	ES319S	8.25	.562-18 LH				.562-18	7	Adjusting sleeve
310-527	ES3157	8.25	M16 x 1.50	0.621	0.538	0.64	M12 x 1.25	1	Bent
310-547	ES3380	8.37	.687-18 LH	0.609	0.516	0.78	.437-20	1
310-262	ES2026R	8.37	.875-18	0.793	0.722	0.64	.625-18	1
310-334	ES2033R	8.56	.625-18	0.626	0.452	1.39	.625-18	2	Bent
310-333	ES2034L	8.56	.625-18 LH	0.626	0.516	1.39	.437-20	2	Bent
310-336	ES2249R	8.68	.687-18	0.593	0.486	0.9	.437-20	1
310-339	ES2000R	8.68	.687-18	0.748	0.593	0.66	.562-18	1
310-211	ES409L	8.68	.687-18 LH	0.748	0.666	0.65	.625-18	1
310-385	ES2019R	8.75	.687-18	0.623	0.452	1.37	.437-20	1	Bent
310-332	ES2020L	8.75	.687-18 LH	0.623	0.516	0.88	.437-20	1	Bent
310-540	ES3365	8.87	M18 x 1.50	0.694	0.606	0.63	M14 x 1.50	1
310-539	ES3364	8.87	M18 x 1.50	0.697	0.613	0.79	M14 x 1.50	1
310-488	ES3171	9.43	M20 x 1.50	0.698	0.616	0.81	M14 x 1.50	1
310-337	ES2233L	9.56	.875-18 LH	0.776	0.675	0.8	.625-81	1
310-309	ES2146S	9.68	.687-18 LH				.687-18	7	Adjusting sleeve
310-491	ES3249	10.31	1.00-18	0.702	0.594	0.87	M14 x 1.50	1
310-431	ES3123L	10.62	.875-18 LH	0.76	0.692	0.58	.625-18	1
310-393	ES3027R	10.81	1.37-12	0.899	0.783	0.96	.750-16	5
310-392	ES3026L	10.81	1.37-12 LH	0.899	0.783	0.96	.750-16	5
310-525	EV252	10.81	M15 x 1.50				M14 x 1.50	6	Inner socket - female
310-531	EV126	11.75	M14 x 1.50				M14 x 1.50	6	Inner socket - female
310-428	EV128	12	M14 x 1.50				M14 x 1.50	6	Inner socket - female
310-570	EV370	12.12	M14 x 1.50				M22 x 1.50	6	Inner socket - female
310-346	EV116	12.25	M14 x 1.50				M14 x 1.50	6	Inner socket - female
310-563	ES3488	12.37	M14 x 1.50				M18 x 1.5	6	Inner socket - female
310-429	EV127	13.25	M14 x 1.50				.937-20	6	Inner socket - female
346-318	DS1141	14.18	M20 x 1.50	0.703	0.613	0.68	.562-18	2
346-311	DS1038S	14.37	.687-18 LH				.687-18	7	Adjusting sleeve
310-568	EV315	14.75	M14 x 1.50				.937-20	6	Inner socket
346-362	DS1177	14.87	M20 x 1.50	0.698	0.613	0.76	M14 x 1.50	1	Bent
346-360	DS1072	15.62	M20 x 1.50	0.698	0.594	0.79	M14 x 1.50	1	Bent
346-292	DS1002	16.25	M22 x 1.50	0.723	0.615	0.85	M14 x 1.50	1	Bent
346-147	DS806	17.31	.875-18	0.702	0.594	0.89	.562-18	2
346-137	DS794	17.37	.875-18 LH	0.702	0.612	0.71	.562-18	2	Bent
346-308	DS927	17.43	M20 x 1.50	0.702	0.613	0.7	.562-18	1	Bent
346-398	DS1289	17.81	M22 x 1.50	0.698	613	0.7	M14 x 1.50	1	Bent
346-196	DS918	18.25	.875-18	0.702	0.612	0.71	.562-18	2	Bent
346-397	DS1288	18.75	M22 x 1.50	0.703	0.613	0.72	M14 x 1.50	1	Bent
346-485	DS1420	18.87	M22 x 1.50	0.698	0.613	0.7	M14 x 1.50	1	Bent
346-153	DS825	19.62	.875-18	0.702	0.612	0.69	.562-18	2	Bent
346-380	DS1074	25	1.00-16 LH	0.899	0.783	1.02	.750-16	1	Bent - additional hole at 8.75
346-505	DS1224	26.93	M22 x 1.50 LH	0.698	0.613	0.68	.562-18	1	Bent - additional hole at 5.12
346-321	DS1143	27.5	M22 x 1.50 LH	0.698	0.612	0.7	M14 x 1.50	1	Bent - additional hole at 5.18
346-355	DS1176	27.56	M22 x 1.50 LH	0.701	0.613	0.69	M14 x 1.50	1	Bent - additional hole at 5.12
346-509	DS1438	27.87	1.00-16 LH	0.804	0.723	0.7	M16 x 1.50	1	Bent
346-364	DS1068	30	1.00-18 LH	0.73	0.613	0.83	M14 x 1.50	1	Bent
346-369	DS1158	33	1.25-16	0.716	0.613	0.88	M14 x 1.50	1	Bent - female end w/clamp
346-365	DS1073	33.25	1.00-18 LH	0.703	0.613	0.72	M14 x 1.50	1	Bent - additional hole at 6.87
346-484	DS1419	33.5	1.00-18 LH	0.716	0.619	0.86	M14 x 1.50	1	Bent - additional hole at 8.25
346-361	DS1069	33.62	M22 x 1.50 LH	0.724	0.616	0.83	M14 x 1.50	1	Bent - additional hole at 4.93
346-283	DS1001	33.93	M22 x 1.50 LH	0.723	0.615	0.86	M14 x 1.50	2	Bent - additional hole at 4.87
346-309	DS1138	34	M22 x 1.50 LH	0.694	0.61	0.69	M14 x 1.50	1	Bent - additional hole at 6.87
346-507	DS1433	34.75	1.00-16 LH	0.728	0.621	0.86	M14 x 1.50	1	Bent - female end w/clamp - additional hole at 7.00
346-396	DS1287	37	1.00-18 LH	0.698	0.613	0.69	M14 x 1.50	1	Bent - additional hole at 8.25
346-391	DS1175	37.12	1.00-18 LH	0.718	0.613	0.88	M14 x 1.50	1	Bent - additional hole at 7.87
346-378	DS1174	37.56	.875-18 LH	0.703	0.615	0.72	M14 x 1.50	2
346-394	DS1286	38.5	M22 x 1.50 LH	0.698	0.613	0.76	M14 x 1.50	1	Bent - additional hole at 8.12
346-148	DS807	40.5	.562-18	0.69	0.594	0.81	.562-18	1	Bent - ball stud at both ends
346-139	DS796	40.5	.562-18	0.698	0.613	0.68	.562-18	1	Bent - ball stud at both ends
346-483	DS1308	42.87	1.00-18 LH	0.694	0.62	0.7	M14 x 1.50	1	Bent
346-511	DS1440	46.75	137-16 LH	0.751	0.634	0.85	M14 x 1.50	1	Bent - additional hole at 5.00
346-159	DS837	49.37	1.00-18	0.702	0.594	0.84	.562-18	1	Bent - additional hole at 12.12
346-199	DS922	49.56	1.00-18	0.776	0.662	0.91	.562-18	1
346-363	DS1071	50	1.00-18 LH	0.719	0.613	0.88	M14 x 1.50	1	Bent - additional hole at 4.12
346-187	DS905	50.75	1.00-18 LH	0.776	0.67	0.78	.625-18	1	Straight - additional hole at 4.37
346-200	DS923	51.12	1.00-18	0.776	0.662	0.71	.562-18	2	Bent
346-163	DS841	52.25	.875-18	0.776	0.675	0.86	.625-18	1	Straight - additional hole at 27.37
346-185	DS893	52.25	1.00-18 LH	0.776	0.675	0.83	.625-18	1	Straight - additional hole at 4.25
346-368	DS1163	54.5	1.25-16	0.716	0.61	1.06	M14 x 1.50	1	Bent cross tube w/clamp - additional hole at 4.12
