Chalmers – 700 Series Trailer Suspension

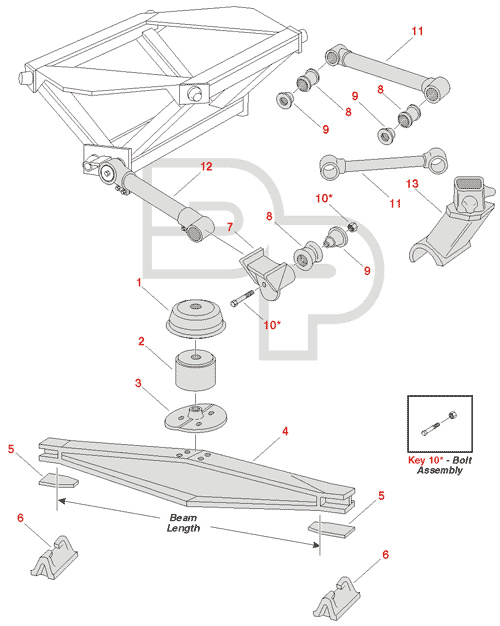

CHALMERS - 700 SERIES TRAILERS SUSPENSION

KeyPart #Description# Req.OEM Reference
1334-860Restrictor Can; 4 7/16"H x 12 5/8"Dia. x 3/16"Thk.2373028, 373020
2325-156Spring, Rubber; 8"H x 9 1/2"Dia.215002
3334-866Plate, Bottom Spring; 11 1/2" x 5 Deg.2700520
3334-863Plate, Bottom Spring; 54"-63" Axle Centers2700204
3---Bottom Spring Plate, 72" Axle Centers2700203
4338-1311Walking Beam; 51 3/4"Lg.2700083, 700015
4---Walking Beam, 60 3/4"Lg.2700084
4---Walking Beam, 69 3/4"Lg.2700085
5334-945Plate, Beam End Repair - All Beams4700313
6338-1404Saddle; 5" Round4222083
6338-1405Saddle; 5" Square4231026
7338-1313Bracket, Torque Rod; 5" Round Axles4222139
7---Torque Rod Bracket, 5" Square Axles4231000
7---Torque Rod Bracket, 4" x 6" Rectangular Axles4228000
7---Torque Rod Bracket, 5" Round Axles4700333
8321-276Bushing; 2 9/16"ID x 4 1/4"OD x 4 5/32"Lg.16800010
8321-277Bushing; 2 9/16"ID x 4 1/2"OD x 4 5/32"Lg.16800009
8321-273Bushing; 2 3/8"ID x 3 1/8"OD x 3 25/32"Lg.1622128, 22082
8321-273UBushing, Urethane32
8321-274Bushing; 2 3/8"ID x 3 7/32"OD x 3 25/32"Lg.1622129
9321-275Spigot Cap - 3.75" OD16260002
9334-853Spigot Cap - 4.0" OD16800201
9334-855Spigot Cap - 4.53" OD16800055
10334-624Bolt Assembly; 5/8"-11 x 3 1/2"16K880230
10334-754Bolt Assembly; 5/8"-18 x 5 1/2"Lg.16K880231
10334-770Bolt Assembly; 5/8"-18 x 5"Lg.16K880640
11345-674Torque Rod, Rigid; 21 1/2"4223214
11TMR8514Torque Rod, Rigid, 21 1/2"4805214
12345-685Torque Rod, Adjustable; 23" Mean LengthAR216240
12345-676Torque Rod, Rigid; 24"AR223240
12345-683Torque Rod, Rigid; 33"AR223330
12345-682Torque Rod, >Adjustable; 33" Mean LengthAR216330
12---Torque Rod, RigidARVarious
12---Torque Rod, AdjustableARVarious
13338-1317Tower, Wishbone; 5" Round AxlesAR700010
13---Tower, 5" Round Axle, InboardAR700030
13---Tower, 5" Round Axle, OutboardAR700337
13---Tower, 5" Round Axle, InboardAR700036
