Chalmers – 300 Series Trailer Suspension

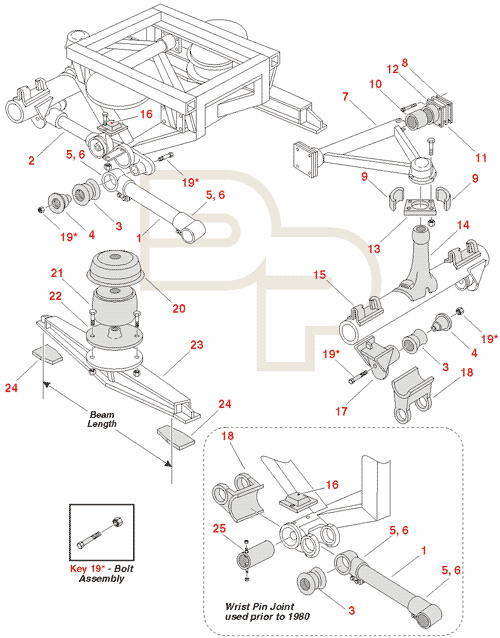

CHALMERS - 300 SERIES TRAILERS SUSPENSION

KeyPart #DescriptionOEM Reference
1345-684Torque Rod Adjustable, 23" Mean Length216230
2345-675Torque Rod, 23" Rigid223230
2321-273UBushing Urethane, 2 3/8"ID x 3 1/8"OD x 3 25/32"Lg-
3321-273Bushing, 2 3/8"ID x 3 1/8"OD x 3 25/32"Lg22128, 22082
3321-274Bushing, 2 3/8"ID x 3 7/32"OD x 3 25/32"LgOem: 22129
4321-275Cap260002
5345-673Torque Rod End LH.22046
6345-672Torque Rod End RH22045
7338-1403Wishbone68017
8--Wishbone Thrust Plate, 1/4" Thick220999
9334-872Bushing, Wishbone Apex22036
10321-278Bushing, 3 9/16"ID x 4 1/8"OD x 3 1/4"Lg22115
11334-869Shim, 5 7/16" x 5 7/16"x16 Gauge22105
12334-871Housing, Wishbone End22107
13334-950Plate Retainer22034
14334-1408Tower, Wishbone, 5" Round Axles22114
14-Tower, Wishbone 5" Square Axles-
15338-1404Saddle 5" Round222083
15338-1405Saddle 5" Square231026
16325-159Cushion Low Rebound48045
17338-1313Bracket, Torque Rod 5" Round Axles222139
17-Bracket, Torque Rod 5" Square Axles231000
17-Bracket, Torque Rod 4"x6" Rectangular Axles900036
18338-1314Bracket, Torque Rod 5" Round Axles48017
18-Bracket, Torque Rod 5" Square Axles231008
19334-624Bolt Assembly 5/8'-11x3-1/2"K880230
20334-860Restrictor Can 4 7/16"H x 12 5/8"Dia.x 3/16"Thk.373028, 373020
21325-156Spring, Rubber 8"H x 9-1/2" Dia15002
22334-864Plate, Bottom Spring2116
23-Walking Beam51 3/8"Lg.
23338-1310Walking Beam 52 3/4"Lg.345014
23------Walking Beam 62" Lg346015
23------Walking Beam69-3/4"Lg.
23------Walking Beam 70-3/4" Lg.347041
24334-945Plate, Beam End Repair700313
25334-854Pin Pin; 2"ID x 2 3/8"OD x 6"Lg22037
