SUSPENSION VEHICLE SHOCKS

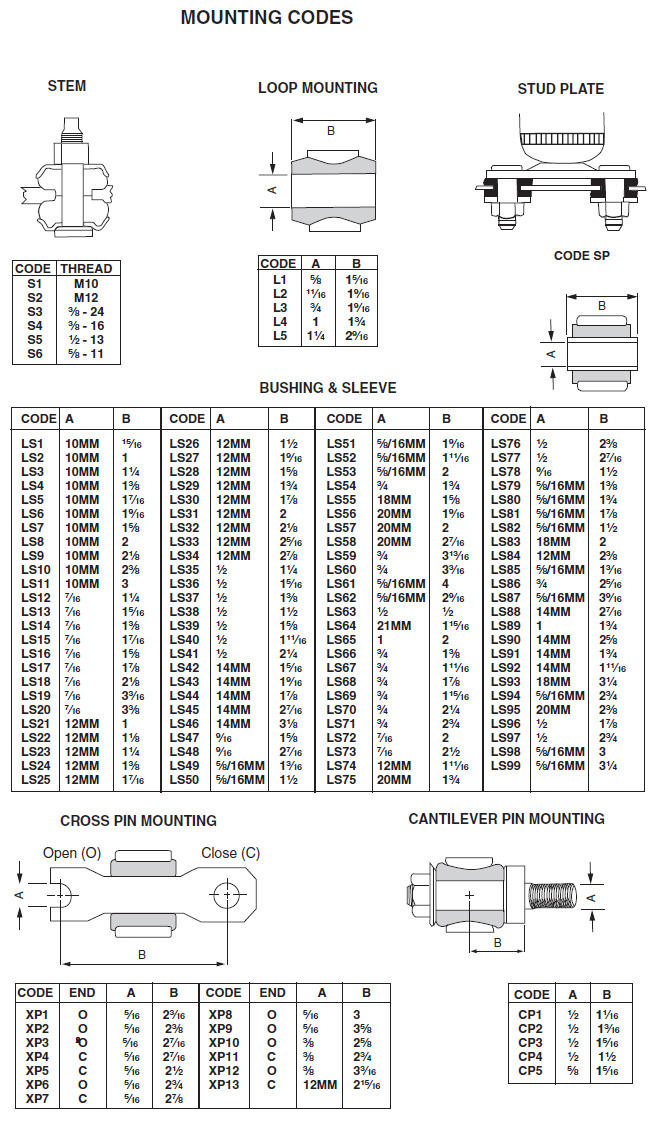

Part #	Upper	Lower.	Compress	Extend	Travel	Reserve Tube	Rebound	Compress
M65101	L3	L3	12.625	19.625	7	2.38	383	206
M65102	L4	L4	16.625	27	10.375	2.38	1011	242
M65103	L4	L4	16.375	26.375	10	2.38	860	279
M65105	LS80	S6	14	22.875	8.875	2.38	989	427
M65107	S6	LS54	12.875	20.75	7.875	2.38	910	464
M65108	LS54	LS54	14.5	23.375	8.875	2.38	1031	453
M65110	LS54	LS54	15.25	24.875	9.625	2.38	832	250
M65130	LS53	LS53	15.25	24.875	9.625	2.38	1301	248
M65139	LS86	LS86	14.5	22.75	8.25	2.38	1316	262
M65140	LS86	LS86	14.375	22.5	8.125	2.38	1091	317
M65147	LS53	LS54	13	22.25	7.25	2.38	776	138
M65148	LS86	LS86	14.625	22.75	8.125	-	-	-
M65400	S6	L4	17.375	26.75	9.375	2.38	546	250
M65401	LS54	LS54	17.875	29	11.125	2.38	617	127
M65402	S6	L4	15	23.5	8.5	2.38	574	225
M65404	S6	S6	12	18.25	6.25	2.38	881	428
M65405	L3	L3	13.125	19.5	6.375	2.38	614	449
M65408	S6	LS71	14.125	21.75	7.625	2.38	856	453
M65409	LS53	LS53	15.75	24.75	9	2.38	273	117
M65411	LS54	LS54	16.375	26	9.625	2.38	559	126
M65415	L3	L3	16.875	26.75	9.875	2.38	991	407
M65416	LS54	LS54	12	17.25	5.25	2.38	1045	407
M65419	LS54	LS54	11.625	16.5	4.875	2.38	991	127
M65420	LS54	LS54	18.125	29.5	11.375	2.38	559	117
M65421	LS54	LS54	15.5	24.25	8.75	2.38	1100	251
M65435	L4	L4	17.875	28.25	10.375	2.38	1501	405
M65436	S6	S6	11.375	16.875	5.5	2.38	1099	3.76
M65444	S6	L4	15	23.25	8.25	2.38	800	339
M65466	L3	L3	15.75	24.625	8.875	2.38	858	453
M65468	S6	S6	15.625	25.5	9.875	2.38	802	400
M65480	LS54	S6	16	25.625	9.625	2.38	593	99
M65482	LS54	LS54	17.375	28	10.625	2.38	681	103
M65486	LS61	LS62	15.625	24.375	8.75	2.38	560	263
M65490	LS59	LS60	15	22.375	7.375	2.76	1152	303
M65492	LS87	LS61	14.5	21.875	7.375	2.38	-	-
M65495	LS87	LS80	18.375	30.5	12.125	-	-	-
M65512	LS54	LS54	11.06	15.91	4.86	-	-	-
M66118	LS84	L1	7.625	10.625	3	-	-	-
M66147	LS77	LS77	8.625	10.375	1.75	1.86	515	257
M66502	LS54	LS54	13.875	22.5	8.625		604	335
M66605	S5	S5	12.875	21.375	8.5	2	433	110
M66607	LS54	LS54	9.875	13	3.125	2	528	109
M66608	-	-	-	-	-	-	-	-
M66627	LS54	LS54	10.375	14	3.625	2	737	151
M66628	S6	S6	16.875	29.5	12.625	2	369	101
M66634	LS54	LS54	12.125	17.5	5.375	2	528	144
M66636	LS54	LS54	13.375	20	6.625	2	812	204
M66638	LS54	LS54	16.5	26.375	9.875	2	885	242
M66833	LS54	LS54	15.75	24.75	9	2	676	150
M66861	L3	L3	17.25	28.625	11.375	2.36	650	170
M66884	LS54	LS54	17.125	27.5	10.375	2	815	136
M66886	LS54	LS54	14	21.375	7.375	2	812	204
M66891	L4	L4	16.375	26.75	10.375	2	547	138
M66893	LS54	LS54	11.875	17	5.125	2	676	150
M66894	LS54	LS54	17.875	29.25	11.375	2	676	150
M66923	S5	S5	14	24.125	10.125	2.25	386	121
M66924	S5	LS53	16.125	27.5	11.375	2.36	681	140
M74405	L4	L4	12.625	17.5	4.875	2.75	1060	150
M77409	S6	S6	12.25	18.125	5.875	2.75	1063	129
M74425	LS59	LS60	15	22.125	7.125	2.75	1152	303
M555025	S4	S4	8.625	13.5	4.875	1.75	412	146

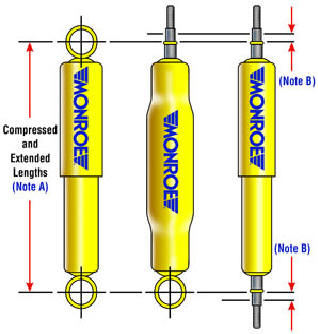

Note A: Compressed and extended lengths are measured from the center of the loops and/or from the stem shoulder.

Note B: When measuring from the brackets on a vehicle, allow 5/8" for standard stem end and 7/8" for each large stem end.
