Dayton – Tri-Lite Trailer 4 Spring Suspension

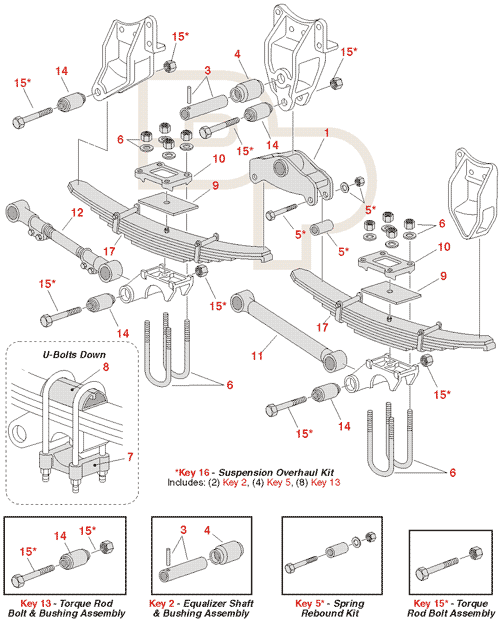

DAYTON - TRI-LITE TRAILER FOUR SPRING SUSPENSION

KeyPart #Description# Req.OEM Reference
1338-699Equalizer Assembly; 16"Lg.239240007
2334-420Shaft & Bushing Assembly2
3334-423Shaft Assembly239400089, 39400021
4321-187Bushing; 2"ID x 3 1/8"OD x 4 1/4"Lg.239400014
5334-201Rebound Kit, 1/2"-20 x 4 3/4"Lg.4
6361-248U-Bolt Kit; Round Bend, Grade 58
6361-218U-Bolt Kit; Round Bend, Grade 58
6361-250U-Bolt Kit; Round Bend, Grade 5839120118
6361-258U-Bolt Kit; Round Bend, Grade 88
6361-252U-Bolt Kit; Round Bend, Grade 58
7338-214Plate, U-Bolt Bottom Clamp; 3 7/8"W x 5 7/8"Lg. C-C - 5" Round Axle439180007
8338-200Saddle, U-Bolt; 3"W x 7 3/4"Lg. x 1 3/4"H439050038
8338-1107Saddle, U-Bolt; Fabricated439050021
9GL-294Liner; 2 7/8" x 7 1/2"Lg w/1/2" HoleAR
10338-203Plate, U-Bolt Top Clamp; 3 7/8"W x 5 7/8" C-C - 5" Rd. & Eaton 5" Sq. Axles439050002
11345-133Torque Rod, Rigid; 16 1/2"139080011
11------Torque Rod, Rigid; 17"139080063
11------Torque Rod, Rigid; 17 1/2"139080045
11------Torque Rod, Rigid; 19 1/2"139080089
11------Torque Rod, Rigid; 20"139080092
12------Torque Rod, Adjustable; 15"-17 1/4"139090029
12345-157Torque Rod, Adjustable; 18 1/4"-21 1/2"239090030
13334-247Bolt & Bushing Assembly8
14321-153Bushing; 7/8"ID x 1 29/32"OD x 3"Lg.839400016
14321-153UBushing, Urethane8
15334-246Bolt Assembly; 7/8"-9 x 5 1/2"Lg.8
16339-136Maintenance Kit; Tri-Lite1
17---Spring Assembly
