15/16-12 STUDS AND NUTS
15/16"-12 - Inner Nuts - Type 1
| Part # | Grade | Thread Size | Inner Thread | Outer Thread | Hex Size | Min. Inner Depth | Height | Application | Flange Dia. |
|---|---|---|---|---|---|---|---|---|---|
| 13-301L | 8 | .93-12 | 1.31-12 | 1.87 | 3.00 | Steel Wheels | |||
| 13-301R | 8 | .93-12 | 1.31-12 | 1.87 | 3.00 | Steel Wheels |
15/16"-12 Studs - Headed Studs - Type 1
| Part # | Grade | Thread Size (A) | Body Dia. (B) | Drum Shoulder (C) | Serration Dia. (D) | Serr. | Appl. | Overall Length | To the Serr. | Serr. Length (G) | Shoulder Length (H) | Max to 1st Full Thread (J) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13-2501L | 8 | .93-12 | .971/.975 | None | .998/1.006 | 36 | Rockwell | 3.96 | .62 | .56 | 1.96 | 2.09 |
| 13-2461 | 8 | .93-12 | .971/.975 | None | .998/1.006 | 36 | Rockwell | 3.96 | .62 | .56 | 1.96 | 2.09 |

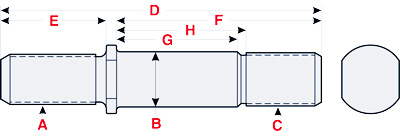

15/16"-12 Studs - Studs with Flats - Type 1
| Part # | Grade | Thread Size Wheel (A) | Body Dia. (B) | Thread Size Drum (C) | Overall Length (D) | Appl. | Stand-Out Length (E) | Drum Side Length (F) | Shoulder Length (G) | Max to 1st Full Thread (H) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13-2022L | 8 | .93-12 | 1.010-1.013 | 1.00-14 | 5.87 | Rockwell | 1.87 | 3.75 | 2.21 | 2.37 |
| 13-2022R | 8 | .93-12 | 1.010-1.013 | 1.00-14 | 5.87 | Rockwell | 1.87 | 3.75 | 2.21 | 2.37 |
