DRAG LINKS

Drag Link & Drag Link Ends

Function: A drag link connects the pitman arm on the steering gear with the steering arm on the spindle. Rotation of the steering gear input shaft causes the pitman arm to rotate back and forth. As this motion occurs, the drag link pushes or pulls the steering arm causing the wheel to pivot on its king pin.

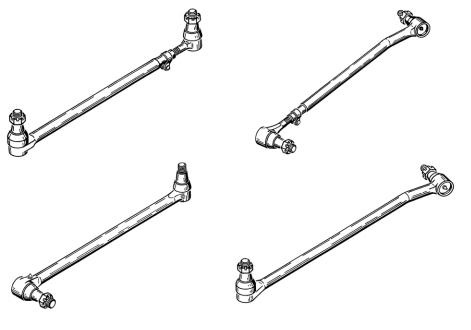

Features and Benefits: Dayton Parts’ drag links are designed to accommodate the heavy loads encountered by trucks, buses and off-highway equipment. We provide nonadjustable or adjustable styles in several configurations.  Solid, one piece drag links povide maximum strength and rigidity. These are recommended for heavy duty trucks.  Tubular versions have separate ball socket assemblies staked in place. The relative angular relationships of the ball studs vary to suit the O.E. vehicle builder’s requirements.  Adjustable drag links provide the ability to fine tune steering linkage systems for precise control. The links function much like a turnbuckle. All ball sockets are either staked or clamped.  The ball sockets are of the same dual bearing, low end movement design as Dayton Parts’ tie rod ends. All are designed to withstand tremendous punishment while providing maximum service life.

Inspection Procedures - Wear Limits
Grab and try to move the tie rod cross tube in any direction. If movement or looseness is felt between the tie rod ends and the tie rod arms, remove and replace the tie rod ends. Check the seals for rips at the time of lubrication.

If removed, use a torque wrench to measure the ball stud turning torque value. If it takes less than 5 inch pounds of torque to rotate the stud, replace the tie rod end.

For inspection station purposes, place the vehicle out of service if lateral movement (using hand pressure only) exceeds 1/8". Do not use leverage as this will overcome the preload spring.

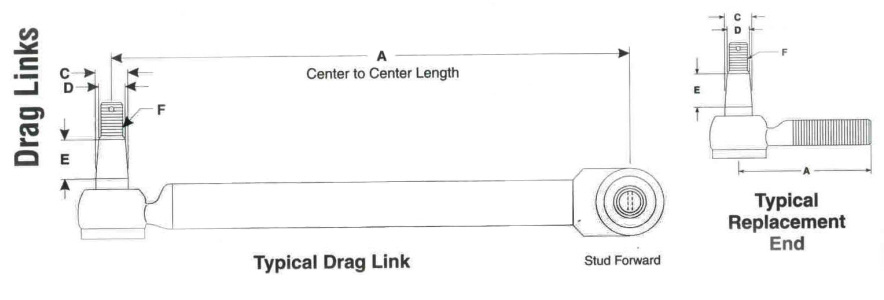

Nonreplaceable Ends (sorted by overall length)
Ball stud dimensions same on both ends

Nonreplaceable Ends (sorted by overall length)
Ball stud dimensions different on both ends

One Replaceable End (sorted by overall length)
Ball stud dimensions may be different on both ends

Two Replaceable Ends (sorted by overall length)
Ball stud dimensions may be different on both ends
